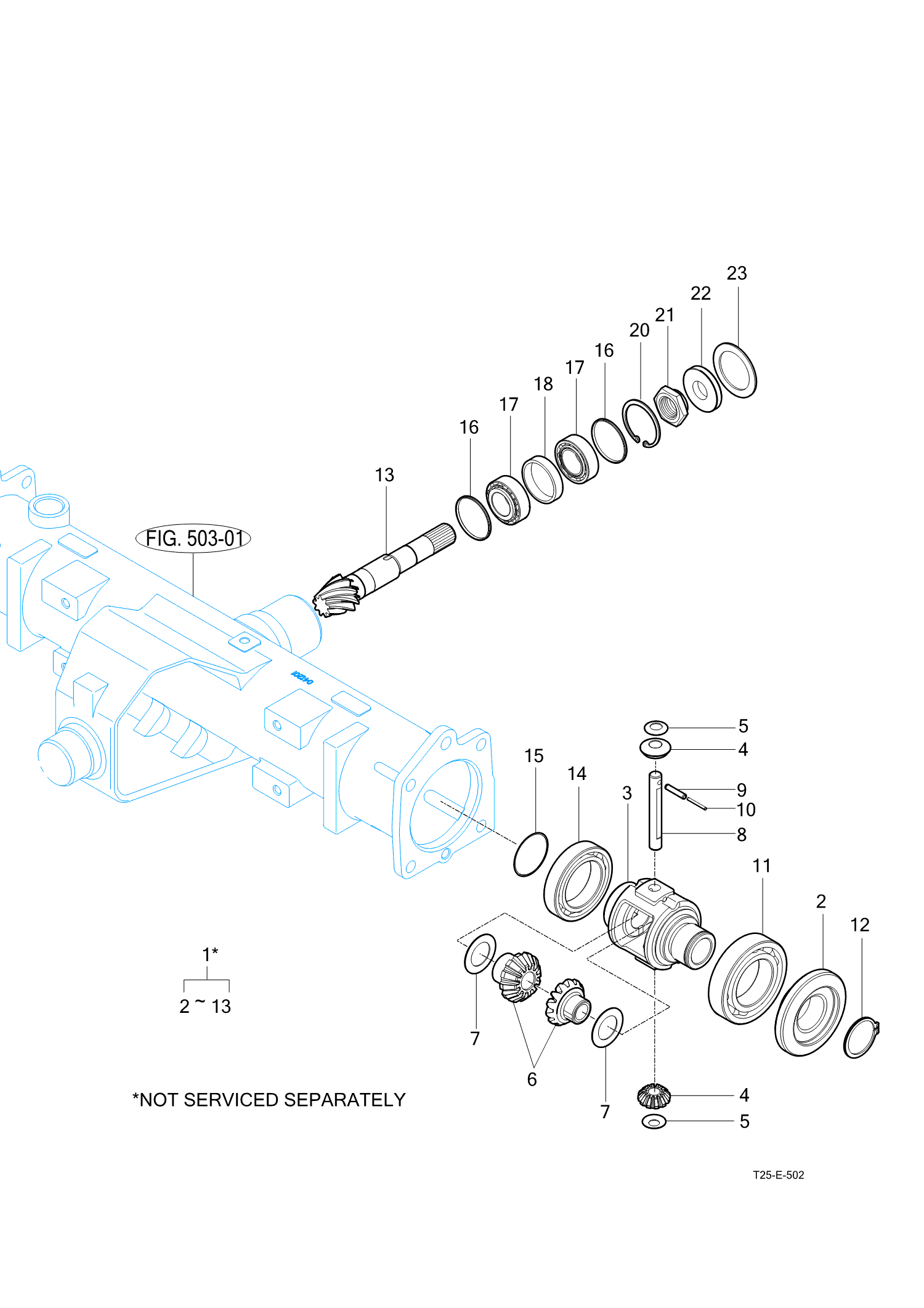

Parts not listed are not available at this time
| NO | Name | Price | Action |
|---|---|---|---|
| 1 | DIFF ASSY , FR | $393 | |
| 10 | PIN , SPRING | $3 | |
| 11 | BEARING , BALL | $52 | |
| 12 | C-RING , SHAFT | $5 | |
| 13 | PINION , BEVEL 8T | $205 | |
| 11 | BEARING , BALL | $67 | |
| 15 | SHIM , B | $5 | |
| 16 | SPACER(45X47X3) | $9 | |
| 17 | BEARING , TAPER-ROLLER | $33 | |
| 18 | COLLAR | $13 | |
| 2 | GEAR , BEVEL 25T | $156 | |
| 14 | C-RING , HOLE | $5 | |
| 21 | NUT , M25 | $13 | |
| 15 | SEAL , OIL/D | $22 | |
| 23 | SPACER | $13 | |
| 3 | CASE , FR DIFF | $108 | |
| 4 | PINION , DIFF 10T | $36 | |
| 5 | WASHER , THRUST | $9 | |
| 6 | GEAR , 20T DIFF SIDE | $73 | |
| 7 | WASHER , THRUST | $7 | |
| 8 | SHAFT , DIFF PINION | $31 | |
| 10 | PIN , SPRING | $3 |
Parts not listed are not available at this time
| NO | Name | Price | Action |
|---|---|---|---|
| 1 | DIFF ASSY , FR | $393 | |
| 10 | PIN , SPRING | $3 | |
| 11 | BEARING , BALL | $52 | |
| 12 | C-RING , SHAFT | $5 | |
| 13 | PINION , BEVEL 8T | $205 | |
| 11 | BEARING , BALL | $67 | |
| 15 | SHIM , B | $5 | |
| 16 | SPACER(45X47X3) | $9 | |
| 17 | BEARING , TAPER-ROLLER | $33 | |
| 18 | COLLAR | $13 | |
| 2 | GEAR , BEVEL 25T | $156 | |
| 14 | C-RING , HOLE | $5 | |
| 21 | NUT , M25 | $13 | |
| 15 | SEAL , OIL/D | $22 | |
| 23 | SPACER | $13 | |
| 3 | CASE , FR DIFF | $108 | |
| 4 | PINION , DIFF 10T | $36 | |
| 5 | WASHER , THRUST | $9 | |
| 6 | GEAR , 20T DIFF SIDE | $73 | |
| 7 | WASHER , THRUST | $7 | |
| 8 | SHAFT , DIFF PINION | $31 | |
| 10 | PIN , SPRING | $3 |
